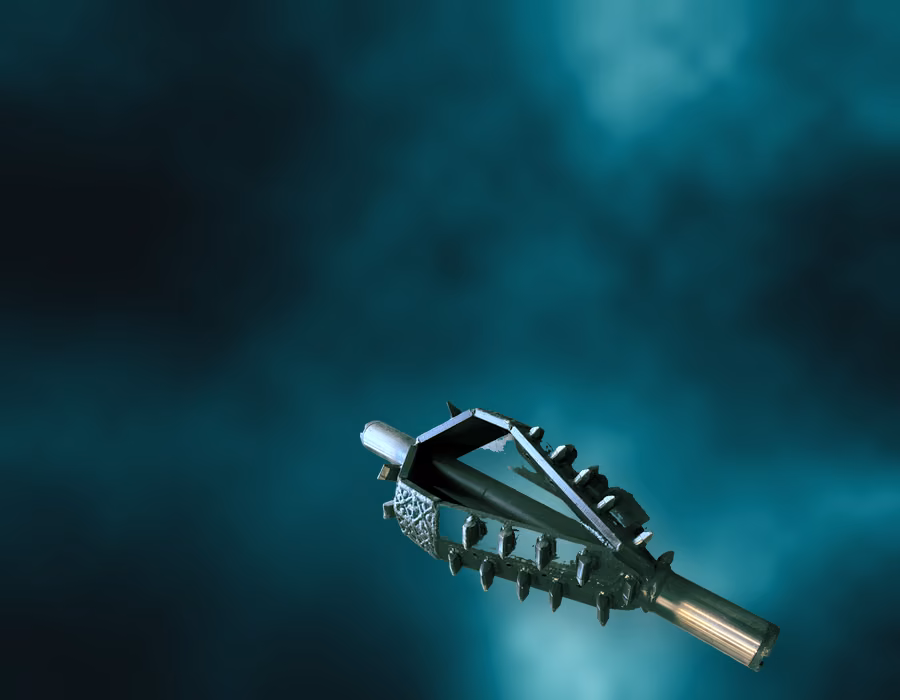

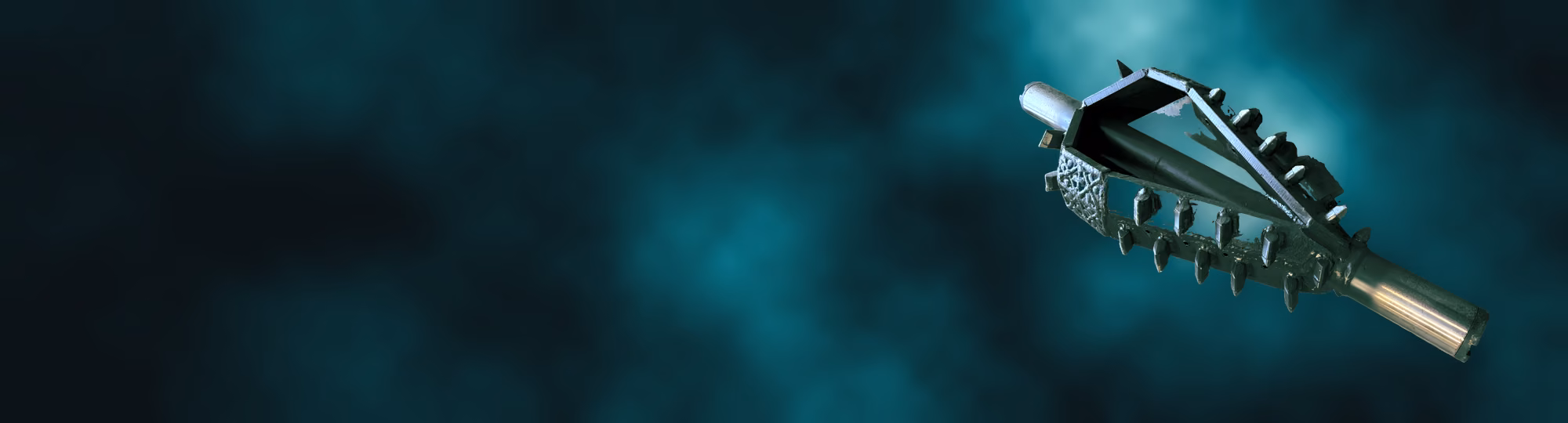

Shredder backreamer
Like the Flycutter but without the stabilizing ring – open wings for maximum mud flow and mixing where circulation matters most.
Shredder reamer range
The Shredder delivers the same rugged performance as the Flycutter, but drops the stabilizing ring for even greater mud-mixing capacity. The open space between the wings improves mud flow and mixing – ideal where efficient circulation is critical. Tungsten-carbide claws and a versatile nozzle system give high output and long life in demanding ground.
Choose the Shredder over the Flycutter in cohesive soils where the cuttings must be mixed thoroughly and the flow past the reamer matters more than stabilisation. The open wings leave the largest possible passage for the drilling fluid.
- Open wings, no stabilizing ring — maximum mud flow
- Tungsten-carbide claws
- Nozzle system for mixing and flushing the cuttings
- 6 reaming diameters, 250 to 500 mm
- 2⅜″ Reg or 2⅞″ Reg connection
| Model | Part number | Reaming Ø | Connection | Recommended ground | Quote |
|---|---|---|---|---|---|
| Shredder 250 mm · Box/box | RM-SH-250-BB-R238 | 250 mm | 2⅜″ Reg | Cohesive soils / max mud mixing | |
| Shredder 300 mm · Box/box | RM-SH-300-BB-R278 | 300 mm | 2⅞″ Reg | Cohesive soils / max mud mixing | |
| Shredder 350 mm · Box/box | RM-SH-350-BB-R278 | 350 mm | 2⅞″ Reg | Cohesive soils / max mud mixing | |
| Shredder 400 mm · Box/box | RM-SH-400-BB-R278 | 400 mm | 2⅞″ Reg | Cohesive soils / max mud mixing | |
| Shredder 450 mm · Box/box | RM-SH-450-BB-R278 | 450 mm | 2⅞″ Reg | Cohesive soils / max mud mixing | |
| Shredder 500 mm · Box/box | RM-SH-500-BB-R278 | 500 mm | 2⅞″ Reg | Cohesive soils / max mud mixing |
Other connections and configurations available – contact us for the full configuration.
Need a backreamer not in the list for your bore?
Send us your thoughts on what you need or give us a call.
