HDD locating systems
The Mag X walk-over locators from Underground Magnetics, with Echo and Armor VTX sondes.
Locating from Underground Magnetics
A walk-over locating system tells the driller where the drill head is: its depth, pitch and roll, and where it is heading. HDD Gear supplies the Mag X series from Underground Magnetics — three locators that share the same frequency range and telemetry, and differ in display, GPS and the sondes they run.
Every Mag X system works on 16 frequencies from 0.325 to 41 kHz, including the sub-kHz rebar frequencies for work under reinforced concrete and wire mesh. Both the frequency and the power level are changed while the sonde is down the hole, and telemetry reaches the display at the rig from up to 900 m. Bore logging is built in: every rod is recorded, utility crossings are added as you expose them, and the finished report is e-mailed from the display or synced to the UMmaps web portal.
The sonde decides the range. The Echo series runs from the 16 cm Echo ST for tracing existing conduit to the Echo 110 with 110 m depth and data range. The Armor VTX sondes have a steel body, three power levels and all 16 frequencies, reach up to 120 m and are used with the Mag X GEO.
- 16 frequencies from 0.325 to 41 kHz
- Telemetry up to 900 m on four radio channels
- Frequency and power level changed down-hole
- Built-in bore logging, synced to UMmaps
- Locators IP65, sondes IP67 — accuracy ±5 %
- Sondes with a range of up to 120 m
The Mag X series
7″ colour touchscreen and integrated RTK GPS, accurate to 1–3 cm and with elevation. Logs pitch, roll, temperature, depth and GPS position for every rod, records utility crossings with type, position and depth, and creates and shares the report straight from the locator.
See specifications→

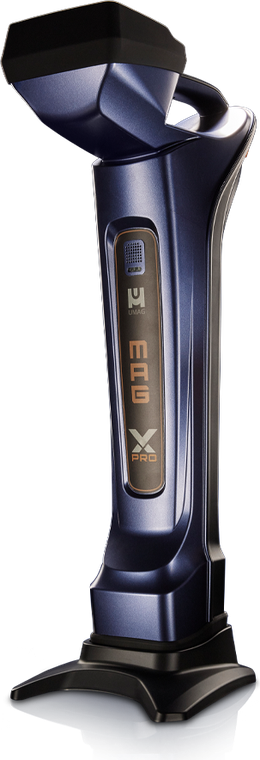

The most powerful Mag X, paired with the Echo 75XF sonde. The Solid Core 3D Antenna Cluster extends the range on the sub-kHz frequencies, so you can stay low in frequency where there is interference.
See specifications→

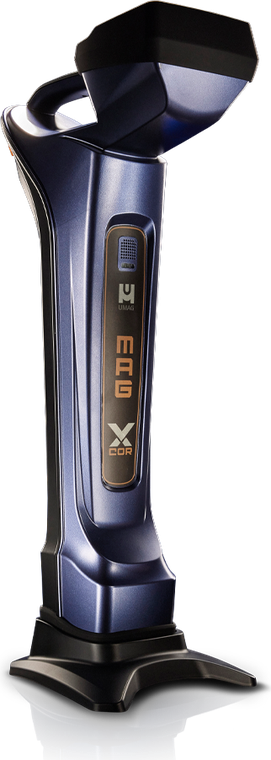

The core functions in a simpler package: a stand-up locator with a 4″ reflective LCD, a 7″ Android touchscreen at the rig and tracking on the fly for fast everyday locating.
See specifications→Locators and sondes
Choose the locator, then the sonde for the depth and the housing you run. Press Get quote on any row and we come back with a quote, stock and lead time.
Mag X locators
All three: 16 frequencies 0.325–41 kHz, four radio channels with telemetry up to 900 m, accuracy ±5 %, IP65 and built-in bore logging. Radio in Europe: 433 MHz on the Mag X PRO and COR, 869 MHz on the Mag X GEO, which can also send its data over the mobile network. Locator size 73.5 × 23 × 33 cm (GEO 73.5 × 23 × 35.5 cm); the 7″ display at the rig is 19 × 13 × 19 cm and weighs 1.5 kg.
| Model | Part number | Display | Antenna | GPS | Battery life | Weight | Sondes | Quote |
|---|---|---|---|---|---|---|---|---|
| Mag X GEO | — | 7″ colour touchscreen in the locator | Solid Core 3D Antenna Cluster | Integrated GPS + RTK, 1–3 cm | Up to 15 h locator / 50 h display | 4.8 kg | Echo X-Mini, 50XF, 70, 75XF, 90, 110 and all Armor VTX | |
| Mag X PRO | — | Remote display: 7″ colour touchscreen, Android | Solid Core 3D Antenna Cluster | — | Up to 50 h | 3.85 kg | Echo X-Mini, 50XF, 70, 75XF, 90, 110 | |
| Mag X COR | — | 4″ LCD in the locator + 7″ Android display | Faraday-shielded 3D antennas | — | Up to 50 h | 3.85 kg | Echo X-Mini, 50XF |

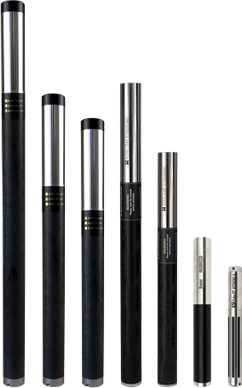

Echo sondes
Range and run time are given per power level, lowest first. With the 261020 cell the Echo 50XF runs 60 / 15 h. Echo sondes are IP67, withstand up to 88 °C and have 24 roll positions and 0.1 % pitch resolution.
| Model | Part number | Ø × length | Frequencies | Range | Battery | Run time | Quote |
|---|---|---|---|---|---|---|---|
| Echo ST | 2000107 | 2 × 16 cm | 30 kHz | approx. 20 m | 3 V lithium | — | |
| Echo X-Mini | 2000900 | 2.5 × 20 cm | 19 / 30 kHz | 18 m | 1 × 18650 | 18 h | |
| Echo 50XF | 2000202XF | 3.2 × 38 cm | 16, 0.325–41 kHz | 40 / 50 m | 1 × 21700 or 1 × 261020 | 50 / 12 h | |
| Echo 75XF | 2000321 | 3.2 × 48 cm | 16, 0.325–41 kHz | 35 / 55 / 85 m | 2 × 26650 | 100 / 60 / 11 h | |
| Echo 70 | 2000204 | 3.6 × 40.4 cm | 12, 4–41 kHz | 50 / 70 m | 3 × 18650 | 60 / 15 h | |
| Echo 90 | 2000205 | 3.6 × 45.5 cm | 12, 4–41 kHz | 70 / 90 m | 2 × 18650 B2 | 80 / 20 h | |
| Echo 110 | 2000206 | 3.6 × 60.5 cm | 12, 4–41 kHz | 90 / 110 m | 3 × 18650 B2 | 120 / 30 h |
Armor VTX sondes
Steel body, three power levels and 16 frequencies from 0.325 to 41 kHz. Used with the Mag X GEO. With a 261020 primary cell the VTX50 and VTX75 run up to 300 h on low power. The Armor VTX85 fits standard Ditch Witch housings.
| Model | Part number | Ø × length | Frequencies | Range | Battery | Run time | Quote |
|---|---|---|---|---|---|---|---|
| Armor VTX50 | 2000428 | 3.2 × 38 cm | 16, 0.325–41 kHz | 25 / 35 / 50 m | 1 × 21700 or 1 × 261020 | 100 / 30 / 9 h | |
| Armor VTX75 | 2000429 | 3.2 × 48 cm | 16, 0.325–41 kHz | 35 / 55 / 75 m | 1 × 21700 or 1 × 261020 | 100 / 18 / 7 h | |
| Armor VTX85 | 2000493 | 3.6 × 40.4 cm | 16, 0.325–41 kHz | 50 / 70 / 85 m | 3 × 18650 | 100 / 30 / 9 h | |
| Armor VTX95 | — | 3.6 × 45.7 cm | 16, 0.325–41 kHz | 61 / 66 / 95 m | 2 × 18650 B2 | 80 / 50 / 13 h | |
| Armor VTX120 | 2000430 | 4.2 × 62.6 cm | 16, 0.325–41 kHz | 80 / 100 / 120 m | 3 × 21700 B2 | 250 / 100 / 23 h |
Accessories
Batteries and housings for the Echo sondes.
| Model | Part number | Contents | For | Quote |
|---|---|---|---|---|
| Echo Cell Kit | — | Two cartridges, two rechargeable 18650 cells and a charger | Echo sondes | |
| Echo Power Cell | — | Non-rechargeable lithium cell for high-power mode | Echo sondes | |
| Sonde housing for Echo 90 and 110 | — | Housing made for the antenna design of these two sondes | Echo 90 / Echo 110 |
Spec sheets and manuals
Underground Magnetics' own documents for the Mag X series. The manual and the quick-start guide are available in several languages.
Data per Underground Magnetics, spec sheets 2025; range is depth and data range and depends on interference. Run time is with rechargeable cells. Mag X, Echo and Armor VTX are products of Underground Magnetics; product images: Underground Magnetics. Ditch Witch® is a trademark of The Charles Machine Works, Inc.
