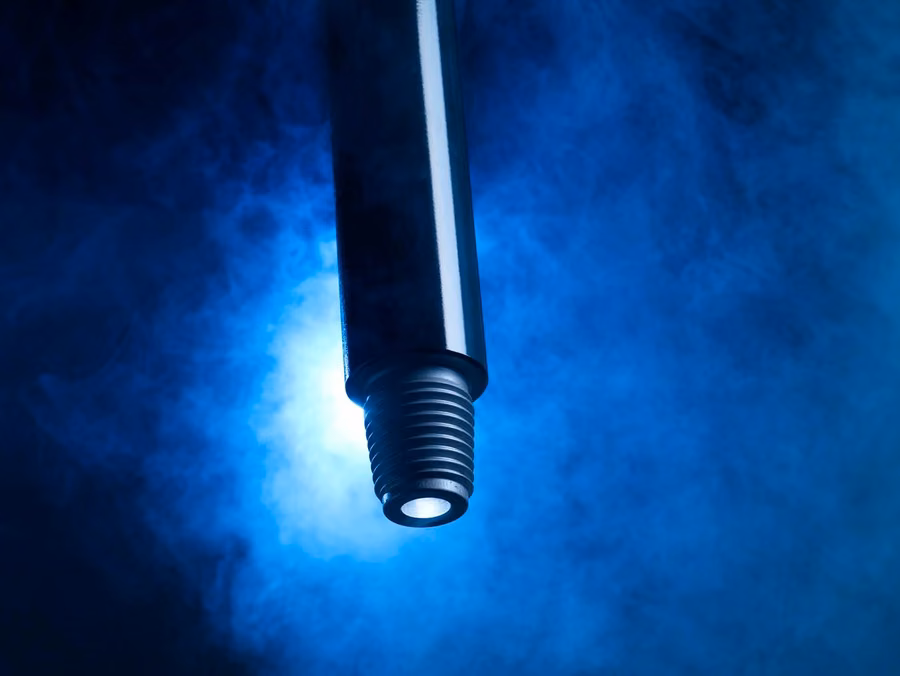

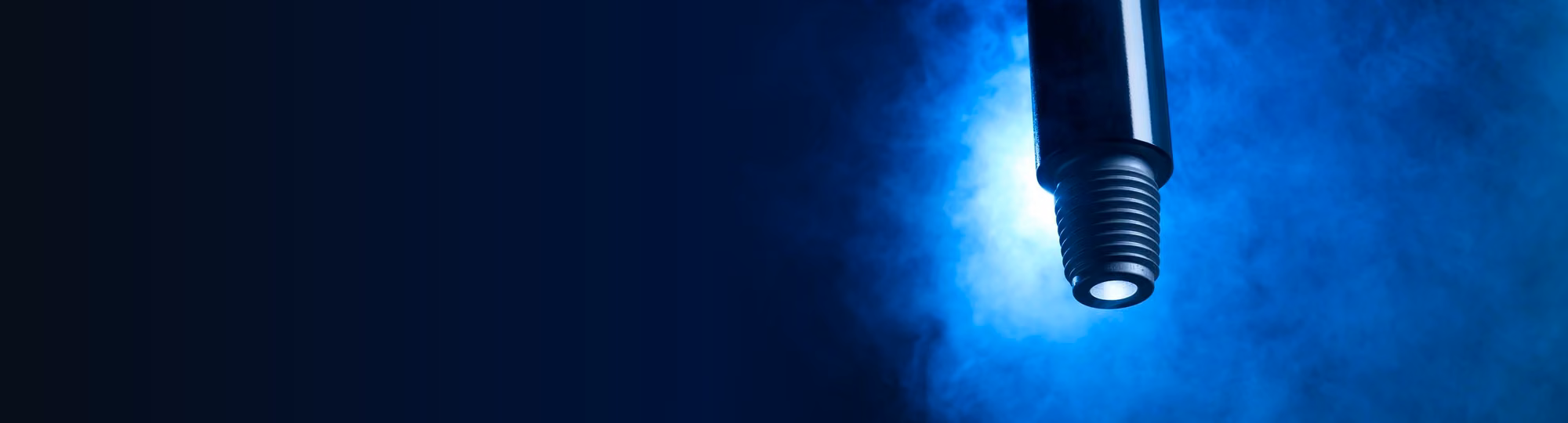

One-piece forged drill pipe from Hunting — HIWS1, HXT and Ditch Witch-thread — plus the welded Advantage Series, for Vermeer, Ditch Witch and other rigs.
Hunting heat-treats, upsets and threads its drill pipe at its own plant in Broussard, Louisiana, and every pipe is traceable. The one-piece forged design has no joints and no welds between tube and tool joint.
On the market since 1997. A steep-tapered, deep-stabbing connection with a fast-pitch thread for quick make-up and break-out, and a double shoulder for added torque. Forged in a special I-145-grade alloy with internal and external upset.
Hunting's high-torque connection: according to Hunting 30% more torque and up to 44% more flow capacity. The best choice for air hammers and mud motors.
Welded drill pipe with the same connections, in the most common sizes — the economical choice when one-piece forged is not required.
Sixteen pipes, from 1.315″ tube for the D6x6 up to 3.500″ for the D100x140. In Hunting's price list this is the FS1 series.
| Compatible machine | Part number | Tube O.D. / wall (in) | Tube O.D. / wall (mm) | Connection | Tool joint O.D. | Length | Weight | Bend radius | Torque rating | Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| D6x6 | HI222394 | 1.315″ / .179 | — | HIWS1-200 | — | 6′ | — | — | — | |
| TT4X, JT5, JT520, DD65 | HI216490 | 1.660″ / .191 | 42.2 / 4.9 | HIWS1-200 | 1.875″ (47.6 mm) | 5′ (1.5 m) | 21 lb (9.5 kg) | 95.5′ (29.1 m) | 1,500 ft·lb (2,034 Nm) | |
| D7x11, D8x12, D9x13, JT9, JT922, JT10, D9x13 S3, D10x15 S3, UNI 15x22 | HI216492 | 1.660″ / .191 | 42.2 / 4.9 | HIWS1-200 | 1.875″ (47.6 mm) | 6′ (1.8 m) | 26 lb (11.8 kg) | 95.5′ (29.1 m) | 1,500 ft·lb (2,034 Nm) | |
| D16x20, D18x22, D20x22, JT1220 | HI230993 | 1.900″ / .240 | 48.3 / 6.1 | HIWS1-250 | 2.125″ (54.0 mm) | 10′ (3.0 m) | 55 lb (24.9 kg) | 98.7′ (30.1 m) | 2,300 ft·lb (3,118 Nm) | |
| D18x22, D20x22, D20x22 S3, D23x30 S3, D24x26, JT1220, JT20, JT2020, DD2024, DD2226 | HI221628 | 2.063″ / .260 | 52.4 / 6.6 | HIWS1-400 | 2.250″ (57.2 mm) | 10′ (3.0 m) | 62 lb (28.1 kg) | 102′ (31.1 m) | 2,700 ft·lb (3,661 Nm) | |
| D23x30 S3, D24x40, JT20, JT2020, JT25, JT2720M1, JT30, JT3020, DD3238, UNI 25, UNI 30x40 | HI222276 | 2.375″ / .254 | 60.3 / 6.5 | HIWS1-600 | 2.625″ (66.7 mm) | 10′ (3.0 m) | 76 lb (34.5 kg) | 108′ (32.9 m) | 4,200 ft·lb (5,694 Nm) | |
| D36x50, D40x55, UNI 36x50, UNI 40x55, DD4050 | HI296309599 | 2.375″ / .295 | 60.3 / 7.5 | HIWS1-650 | 2.750″ (69.9 mm) | 10′ (3.0 m) | 84 lb (38.1 kg) | 108′ (32.9 m) | 5,500 ft·lb (7,457 Nm) | |
| D36x50, UNI 36x50, UNI 40x55 | HI296312531 | 2.375″ / .295 | 60.3 / 7.5 | HIWS1-650 | 2.750″ (69.9 mm) | 15′ (4.6 m) | 115 lb (52 kg) | 108′ (32.9 m) | 5,500 ft·lb (7,457 Nm) | |
| D36x50, D40x55 S3, UNI 36x50, UNI 40x55 | HI296309521 | 2.625″ / .400 | 66.7 / 10.2 | HIWS1-700 | 3.100″ (78.7 mm) | 10′ (3.0 m) | 117 lb (53 kg) | 145′ (44.2 m) | 6,000 ft·lb (8,135 Nm) | |
| D36x50, D40x55 S3, JT40, UNI 36x50, UNI 40x55 | HI296309522 | 2.625″ / .400 | 66.7 / 10.2 | HIWS1-700 | 3.100″ (78.7 mm) | 15′ (4.6 m) | 165 lb (75 kg) | 145′ (44.2 m) | 6,000 ft·lb (8,135 Nm) | |
| D60x90, UNI 45x65, UNI 70x90 | HI222451 | 2.875″ / .392 | 73.0 / 10.0 | HIWS1-900 | 3.250″ (82.6 mm) | 10′ (3.0 m) | 120 lb (54 kg) | 169′ (51.5 m) | 9,300 ft·lb (12,609 Nm) | |
| D60x90, 18N, 20N | HI222451030 | 2.875″ / .392 | — | HIWS1-900 | — | 3 m | 128 lb | — | — | |
| D50x100, D60x90, JT60, UNI 45x65, UNI 70x90 | HI222452 | 2.875″ / .392 | 73.0 / 10.1 | HIWS1-900 | 3.250″ (82.6 mm) | 15′ (4.6 m) | 180 lb (82 kg) | 169′ (51.5 m) | 9,300 ft·lb (12,609 Nm) | |
| D50x100, D55x100, D60x90, D75x100, D80x100, JT7020, JT8020, JT100, UNI 80x120 | HI222454 | 3.500″ / .449 | 88.9 / 10.4 | HIWS1-800 | 3.625″ (92.1 mm) | 15′ (4.6 m) | 250 lb (113 kg) | 197′ (60.1 m) | 12,000 ft·lb (16,270 Nm) | |
| D80x120, D100x120, D100x140, UNI 110x120 | HI296337977 | 3.500″ / .476 | 88.9 / 12.1 | HIWS1-1000 | 4.375″ (111.1 mm) | 15′ (4.6 m) | 265 lb (120 kg) | 197′ (60.1 m) | 15,000 ft·lb (20,337 Nm) | |
| D80x120, D100x120, D100x140, UNI 110x120, American Augers DD110 | HI296309520 | 3.500″ / .476 | 88.9 / 12.1 | HIWS1-1000 | 4.375″ (111.1 mm) | 20′ (6.1 m) | 351 lb (159 kg) | 197′ (60.1 m) | 15,000 ft·lb (20,337 Nm) |
Ten pipes with the HXT connection, 2.063″ to 3.500″ tube. In Hunting's price list this is the FS2 series.
| Compatible machine | Part number | Tube O.D. / wall (in) | Tube O.D. / wall (mm) | Connection | Tool joint O.D. | Length | Weight | Bend radius | Torque rating | Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| JT2020, D22x33, D24x33 | HI281600 | 2.063″ / .260 | 52.4 / 6.6 | HXT-402 | 2.500″ (63.5 mm) | 10′ (3.0 m) | 63 lb (28.6 kg) | 102′ (31.1 m) | 3,300 ft·lb (4,474 Nm) | |
| D33x44, D36x50, JT25, JT30, JT2720M1, JT3020, DD4045 | HI294566 | 2.375″ / .295 | 60.3 / 7.5 | HXT-602 | 2.750″ (69.9 mm) | 10′ (3.0 m) | 81 lb (36.7 kg) | 108′ (32.9 m) | 5,000 ft·lb (6,779 Nm) | |
| D33x44, D36x50 | HI284153 | 2.375″ / .295 | 60.3 / 7.6 | HXT-602 | 2.750″ (69.9 mm) | 15′ (4.6 m) | 115 lb (52 kg) | 108′ (32.9 m) | 5,000 ft·lb (6,779 Nm) | |
| D33x44, D36x50 | HI294642 | 2.625″ / .400 | 66.7 / 10.2 | HXT-602 | 2.750″ (69.9 mm) | 15′ (4.6 m) | 160 lb (73 kg) | 145′ (44.2 m) | 5,000 ft·lb (6,779 Nm) | |
| JT4020M1 | HI276305 | 2.625″ / .400 | 66.7 / 10.2 | HXT-702 | 3.375″ (85.7 mm) | 14.8′ (4.5 m) | 164 lb (74 kg) | 145′ (44.2 m) | 7,000 ft·lb (9,491 Nm) | |
| D55x100, D75x100 | HI276307 | 2.875″ / .440 | 73.0 / 11.2 | HXT-902 | 3.875″ (98.4 mm) | 15′ (4.6 m) | 198 lb (90 kg) | 169′ (51.5 m) | 13,000 ft·lb (17,626 Nm) | |
| JT7020, JT8020, JT100 | HI350802015 | 3.500″ / .449 | 88.9 / 10.4 | HXT-802 | 4.125″ (104.8 mm) | 15′ (4.6 m) | 260 lb (118 kg) | 197′ (60.1 m) | 18,000 ft·lb (24,405 Nm) | |
| D80x120, D100x120, American Augers DD110 | HI276376 | 3.500″ / .449 | 88.9 / 10.4 | HXT-802 | 4.125″ (104.8 mm) | 20′ (6.1 m) | 327 lb (148 kg) | 197′ (60.1 m) | 18,000 ft·lb (24,405 Nm) | |
| D100x140, Prime Drilling PD 50/30 | HI296100215 | 3.500″ / .476 | 88.9 / 12.1 | HXT-1002 | 4.375″ (111.1 mm) | 15′ (4.6 m) | 260 lb (118 kg) | 197′ (60.1 m) | 24,000 ft·lb (32,540 Nm) | |
| D100x120, D100x140, Prime Drilling PD 50/30 | HI296100220 | 3.500″ / .476 | 88.9 / 12.1 | HXT-1002 | 4.375″ (111.1 mm) | 20′ (6.1 m) | 327 lb (148 kg) | 197′ (60.1 m) | 24,000 ft·lb (32,540 Nm) |
Nine one-piece forged pipes with Ditch Witch thread, for the JT9 up to the JT100.
| Compatible machine | Part number | Tube O.D. / wall (in) | Tube O.D. / wall (mm) | Connection | Tool joint O.D. | Length | Weight | Bend radius | Torque rating | Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| JT9, JT10 | 355-1149 | 1.650″ / .191 | 41.9 / 4.9 | 1.30-5 | 2.000″ (50.8 mm) | 6′ (1.8 m) | 25 lb (11.3 kg) | 82′ (25.0 m) | 1,100 ft·lb (1,491 Nm) | |
| JT1220 | 355-1005 | 1.819″ / .244 | 46.2 / 6.2 | 1.47-4 | 2.375″ (60.3 mm) | 10′ (3.0 m) | 54 lb (24.5 kg) | 120′ (36.6 m) | 1,400 ft·lb (1,898 Nm) | |
| JT20, JT2020 | 355-1106 | 2.060″ / .295 | 52.3 / 7.5 | 1.94-4 | 2.625″ (66.7 mm) | 10′ (3.0 m) | 68 lb (30.1 kg) | 109′ (32.2 m) | 2,000 ft·lb (2,980 Nm) | |
| JT24 | 355-1312 | 2.252″ / .276 | 57.2 / 7.0 | 1.76-4 | 2.625″ (66.7 mm) | 10′ (3.0 m) | 68 lb (30.1 kg) | 117′ (35.6 m) | 3,000 ft·lb (4,067 Nm) | |
| JT25, JT30, JT3020, JT2720M1 | 355-1244 | 2.375″ / .300 | 60.3 / 7.6 | 2.11-4 | 2.760″ (70.1 mm) | 9.8′ (3.0 m) | 81 lb (36.7 kg) | 123′ (37.5 m) | 4,000 ft·lb (5,420 Nm) | |
| JT40 | 359-1211 | 2.835″ / .313 | 72.0 / 8.0 | 2.10-4 | 3.125″ (79.4 mm) | 15′ (4.6 m) | 140 lb (63.5 kg) | 146′ (44.5 m) | 5,500 ft·lb (7,457 Nm) | |
| JT4020M1 | 400-847 | 2.811″ / .311 | 71.4 / 7.9 | 2.59-4 | 3.500″ (88.9 mm) | 14.8′ (4.5 m) | 148 lb (67.1 kg) | 185′ (56.4 m) | 5,000 ft·lb (6,779 Nm) | |
| JT60 | 355-1079 | 3.059″ / .346 | 77.7 / 8.8 | 2.46-4 | 3.500″ (88.9 mm) | 15′ (4.6 m) | 180 lb (81.7 kg) | 170′ (51.8 m) | 9,000 ft·lb (12,202 Nm) | |
| JT100 | 355-1200 | 3.500″ / .394 | 89.0 / 10 | 3.27-4 | 4.000″ (102 mm) | 14.8′ (4.5 m) | 228 lb (103.4 kg) | 205′ (62.5 m) | 12,000 ft·lb (16,270 Nm) |
Eight welded pipes: four with the HIWS1 connection and four with Ditch Witch thread.
| Compatible machine | Part number | Tube O.D. / wall (in) | Tube O.D. / wall (mm) | Connection | Tool joint O.D. | Length | Weight | Bend radius | Torque rating | Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| D7x11, D9x13, JT9, JT922 | A216492-20 | 1.660″ / .191 | 42.2 / 4.9 | HIWS1-200 | 1.875″ (47.6 mm) | 6′ (1.8 m) | 26 lb (11.8 kg) | 99.0′ (30.2 m) | 1,500 ft·lb (2,034 Nm) | |
| D18x22, D20x22, D23x30, JT1220, JT2020, DD2024 | A221628-20 | 2.063″ / .260 | 52.4 / 6.6 | HIWS1-400 | 2.250″ (57.2 mm) | 10′ (3.0 m) | 62 lb (28.1 kg) | 107′ (32.6 m) | 2,700 ft·lb (3,661 Nm) | |
| D23x30 S3, D24x40, JT2020, JT25, JT2720M1, JT30, JT3020, DD3238 | A222276-20 | 2.375″ / .254 | 60.3 / 6.5 | HIWS1-600 | 2.625″ (66.7 mm) | 10′ (3.0 m) | 76 lb (34.5 kg) | 123′ (37.5 m) | 4,200 ft·lb (5,694 Nm) | |
| D36x50, D40x55 S3, JT40 | A296309522-10 | 2.625″ / .400 | — | HIWS1-700 | — | 15′ | 165 lb | — | — | |
| JT9, JT10 | A355-1149 | 1.600″ / .190 | 40.6 / 4.8 | 1.30-5 | 2.000″ (50.8 mm) | 6′ (1.8 m) | 27 lb (12.3 kg) | 82′ (25.0 m) | 1,100 ft·lb (1,491 Nm) | |
| JT20 | A355-1106 | 2.060″ / .295 | 52.3 / 7.5 | 1.94-4 | 2.625″ (66.7 mm) | 10′ (3.0 m) | 68 lb (30.8 kg) | 107′ (32.6 m) | 2,200 ft·lb (2,983 Nm) | |
| JT25, JT30 | A355-1244 | 2.375″ / .300 | 60.3 / 7.6 | 2.11-4 | 2.760″ (70.1 mm) | 9.8′ (3.0 m) | 81 lb (36.7 kg) | 123′ (37.5 m) | 4,000 ft·lb (5,420 Nm) | |
| JT100 | A355-1200 | 3.500″ / .394 | 89.0 / 10 | 3.27-4 | 4.000″ (102 mm) | 14.8′ (4.5 m) | 228 lb (103.4 kg) | 205′ (62.5 m) | 12,000 ft·lb (16,270 Nm) |
5″ API drill pipe with the DS50 connection, for the Vermeer D220x300.
| Compatible machine | Part number | Tube O.D. / wall (in) | Tube O.D. / wall (mm) | Connection | Tool joint O.D. | Length | Weight | Bend radius | Torque rating | Quote |
|---|---|---|---|---|---|---|---|---|---|---|
| D220x300 | 29637111 | 5.000″ / .362 | 127 / 9.2 | DS50 | 6.625″ (168.3 mm) | 20′ (6.1 m) | 482 lb (218.6 kg) | 350′ (106.7 m) | 35,000 ft·lb (47,454 Nm) |
Hunting drill pipe is made by Hunting; HDD Gear is a reseller. Dimensions and ratings per Hunting's HDD product catalogue — for reference only and subject to change. Your machine may have been supplied with other sized drill stem: confirm the dimensions and the thread before ordering. In the machine column, D models are Vermeer, JT Ditch Witch, UNI Universal HDD, DD65 to DD4050 Toro and Astec, and TT4X, 18N and 20N TT Technologies. Vermeer, Ditch Witch, TT Technologies and the other machine names are trademarks of their respective owners.
Send us your machine model and quantity and we'll come back with a quote and lead time.
