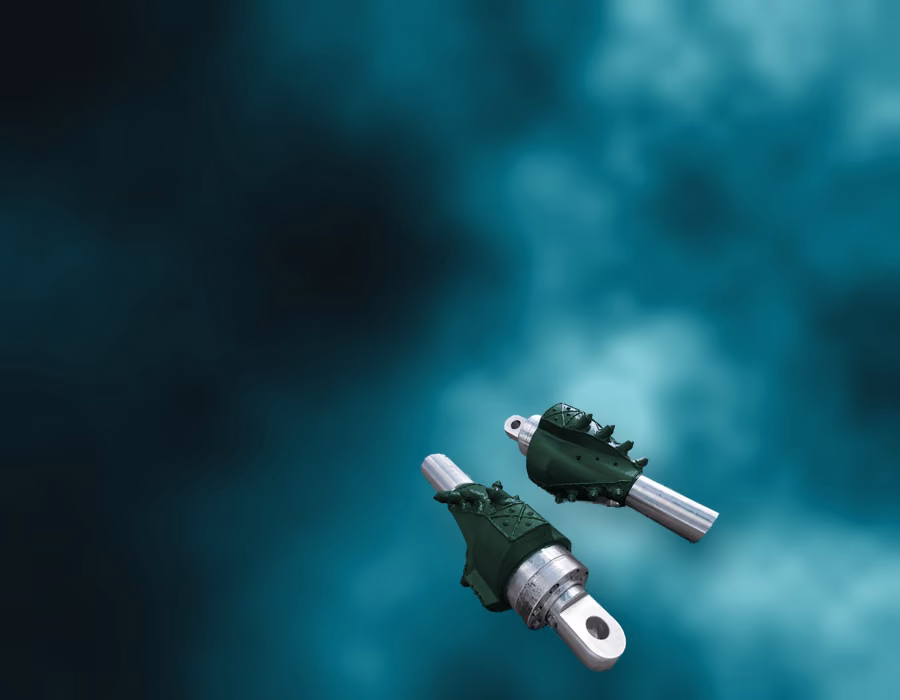

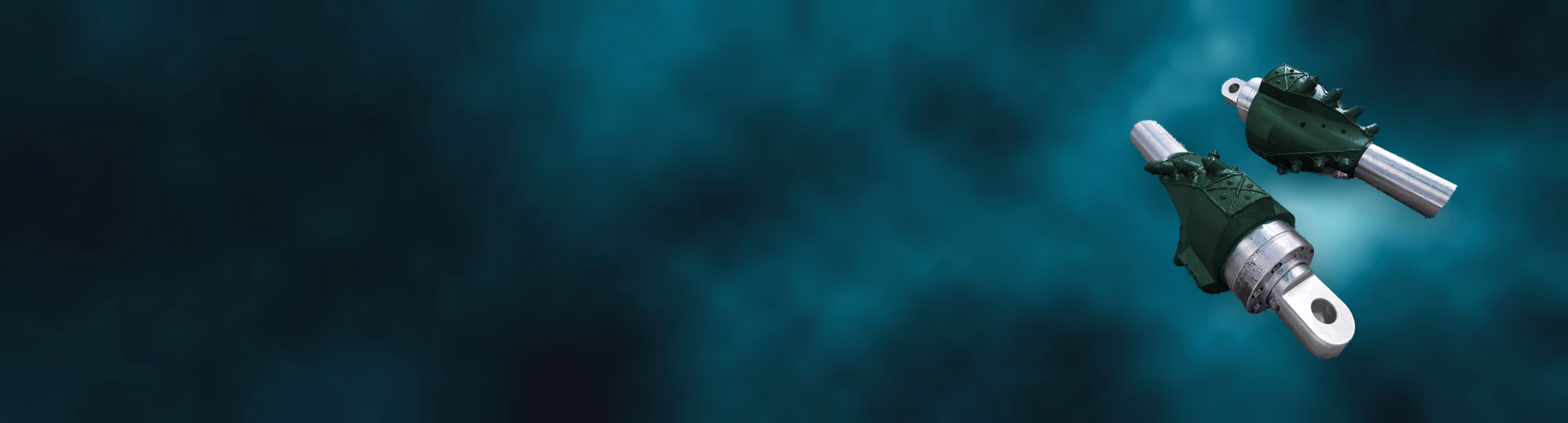

Kodiak backreamer
A solid one-piece reamer built for rock and the harshest ground – heavily armed with tungsten-carbide teeth for long life and consistent cutting.
Kodiak reamer range
Forged from a single piece of steel, the Kodiak shrugs off the harshest conditions. Built for aggressive cutting in rocky ground, it carries extra tungsten-carbide teeth and a tough hard coating for maximum wear resistance and long tool life. The one-piece body adds strength and reliability where durability and steady performance matter most. 150mm-300mm one piece
Choose the Kodiak for rock and hard ground, where a mud-mixing reamer would wear out too fast. Each size is available with two tooth counts — more teeth for harder ground. Other tooth counts and connections are made to order.
- Solid one-piece body
- Extra tungsten-carbide teeth for aggressive cutting in rock
- Hard-faced for maximum wear resistance
- 9 reaming diameters, 200 to 600 mm
- 12, 18, 24 or 30 teeth, depending on size
- 2⅞″ Reg connection
| Model | Part number | Reaming Ø | Connection | Recommended ground | Quote |
|---|---|---|---|---|---|
| Kodiak 200 mm · 12T | RM-KD-200-12T-R278 | 200 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 200 mm · 18T | RM-KD-200-18T-R278 | 200 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 250 mm · 12T | RM-KD-250-12T-R278 | 250 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 250 mm · 18T | RM-KD-250-18T-R278 | 250 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 300 mm · 12T | RM-KD-300-12T-R278 | 300 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 300 mm · 18T | RM-KD-300-18T-R278 | 300 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 350 mm · 18T | RM-KD-350-18T-R278 | 350 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 350 mm · 24T | RM-KD-350-24T-R278 | 350 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 400 mm · 18T | RM-KD-400-18T-R278 | 400 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 400 mm · 24T | RM-KD-400-24T-R278 | 400 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 450 mm · 18T | RM-KD-450-18T-R278 | 450 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 450 mm · 24T | RM-KD-450-24T-R278 | 450 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 500 mm · 18T | RM-KD-500-18T-R278 | 500 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 500 mm · 24T | RM-KD-500-24T-R278 | 500 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 550 mm · 24T | RM-KD-550-24T-R278 | 550 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 550 mm · 30T | RM-KD-550-30T-R278 | 550 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 600 mm · 24T | RM-KD-600-24T-R278 | 600 mm | 2⅞″ Reg | Rock / hard ground | |
| Kodiak 600 mm · 30T | RM-KD-600-30T-R278 | 600 mm | 2⅞″ Reg | Rock / hard ground |
Other tooth counts and connections available – contact us for the full configuration.
Need a backreamer not in the list for your bore?
Send us your thoughts on what you need or give us a call.
