Compact backreamer
A space-saving one-piece reamer with a built-in swivel – versatile and dependable from soft ground to the toughest bores.
Compact reamer range

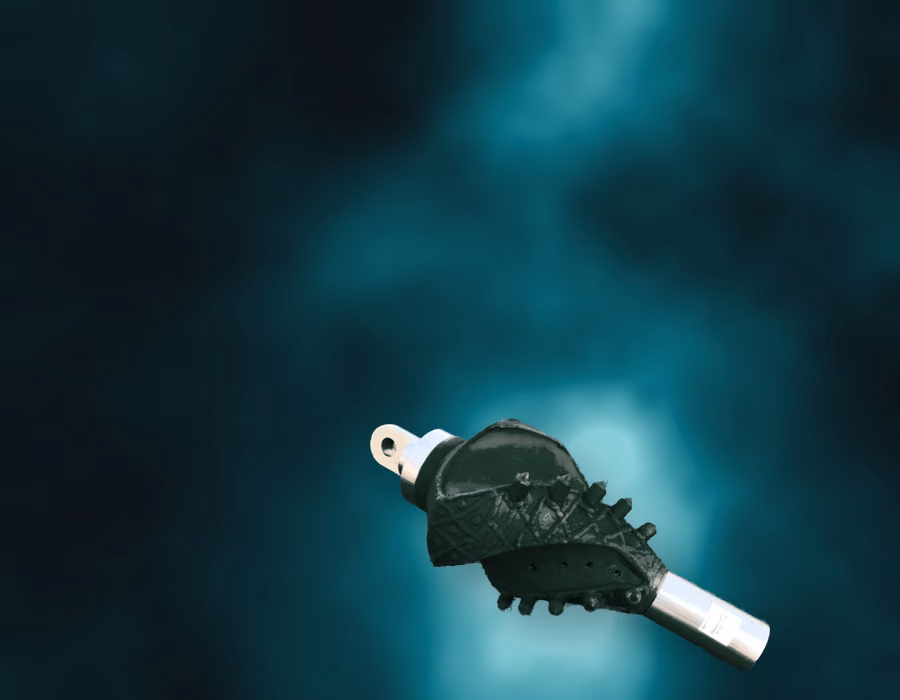

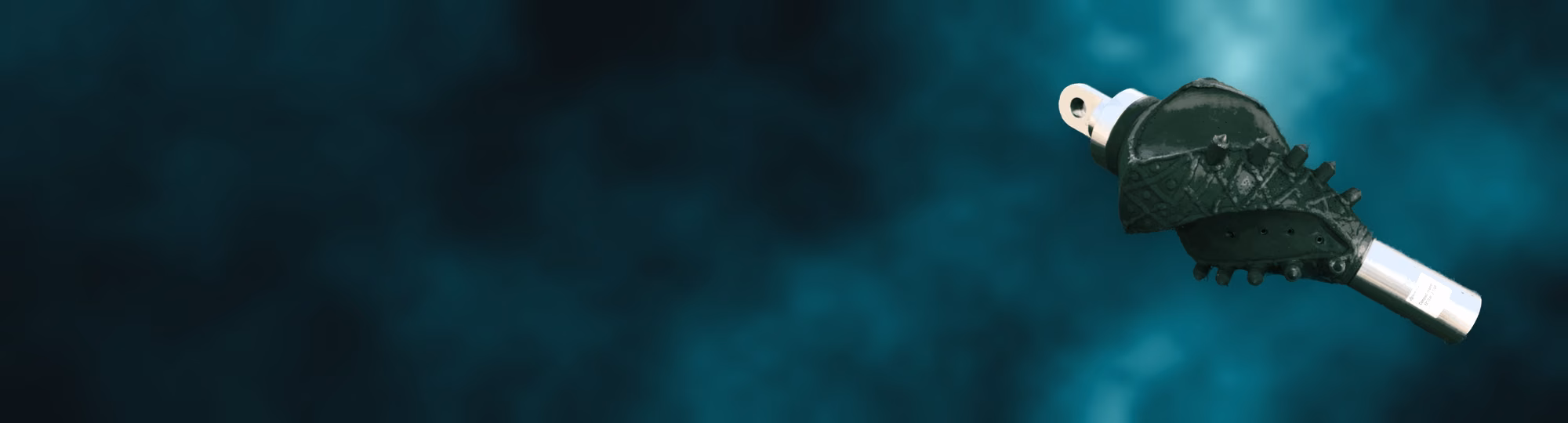

Machined from a single piece of steel, the Compact stays small yet cuts efficiently underground. Tungsten-carbide teeth and a durable hard coating protect it, while the integrated swivel saves space on the string. The all-round choice when you need versatility and reliable performance in demanding ground.
Choose the Compact when one reamer has to cover most jobs: it works from soft soil to tough ground, and with the swivel built in there is one tool less on the string. Other tooth counts and connections are made to order.
- One-piece body, machined from a single piece of steel
- Tungsten-carbide teeth and a hard-faced body
- Built-in swivel — a shorter string behind the reamer
- 7 reaming diameters, 115 to 300 mm
- 5, 8, 12, 18 or 24 teeth, depending on size
- 2″ IF, 2⅜″ Reg or 2⅞″ Reg connection
| Model | Part number | Reaming Ø | Connection | Recommended ground | Quote |
|---|---|---|---|---|---|
| Compact 115 mm · 5T | RM-CP-115-5T-2IF | 115 mm | 2″ IF | Versatile / all-round | |
| Compact 115 mm · 5T | RM-CP-115-5T-R238 | 115 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 130 mm · 5T | RM-CP-130-5T-R238 | 130 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 130 mm · 8T | RM-CP-130-8T-R238 | 130 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 150 mm · 5T | RM-CP-150-5T-R238 | 150 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 150 mm · 8T | RM-CP-150-8T-R238 | 150 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 150 mm · 12T | RM-CP-150-12T-R238 | 150 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 165 mm · 5T | RM-CP-165-5T-R238 | 165 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 165 mm · 8T | RM-CP-165-8T-R238 | 165 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 165 mm · 12T | RM-CP-165-12T-R238 | 165 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 200 mm · 8T | RM-CP-200-8T-R238 | 200 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 200 mm · 12T | RM-CP-200-12T-R238 | 200 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 200 mm · 18T | RM-CP-200-18T-R238 | 200 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 250 mm · 12T | RM-CP-250-12T-R238 | 250 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 250 mm · 12T | RM-CP-250-12T-R278 | 250 mm | 2⅞″ Reg | Versatile / all-round | |
| Compact 250 mm · 18T | RM-CP-250-18T-R238 | 250 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 250 mm · 18T | RM-CP-250-18T-R278 | 250 mm | 2⅞″ Reg | Versatile / all-round | |
| Compact 300 mm · 18T | RM-CP-300-18T-R238 | 300 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 300 mm · 18T | RM-CP-300-18T-R278 | 300 mm | 2⅞″ Reg | Versatile / all-round | |
| Compact 300 mm · 24T | RM-CP-300-24T-R238 | 300 mm | 2⅜″ Reg | Versatile / all-round | |
| Compact 300 mm · 24T | RM-CP-300-24T-R278 | 300 mm | 2⅞″ Reg | Versatile / all-round |
Other connections and tooth counts available – contact us for the full configuration.
Need a backreamer not in the list for your bore?
Send us your thoughts on what you need or give us a call.
